High-Resolution Image Synthesis with Latent Diffusion Models

Robin Rombach, Andreas Blattmann, Dominik Lorenz, Patrick Esser, and Björn Ommer · CVPR 2022 · arXiv:2112.10752 · version 2, 13 April 2022

Takeaway

Latent diffusion keeps the gradual denoising idea of a diffusion model but moves its expensive work out of the full image grid and into a smaller learned representation. A pretrained autoencoder compresses an image into that representation, the diffusion model learns to generate there, and a decoder turns the result back into pixels. The paper’s central bet is that this smaller space can discard visually unimportant detail while preserving enough structure to make convincing images. [Source: paper abstract and §3]

Three points to remember:

1. The main saving comes from smaller working space, not from eliminating iterative denoising. Each network evaluation handles a compact latent grid instead of every RGB pixel.
2. Compression is useful only up to a point. The authors find that downsampling factors from 4 to 16 balance efficiency and perceptual fidelity better than either pixel-space diffusion or very heavy compression in their ImageNet study. [Source: §4.1, Figure 3]
3. Conditioning is built into the denoiser. Cross-attention lets text, semantic maps, or other representations steer the same general architecture. [Source: §3.3]

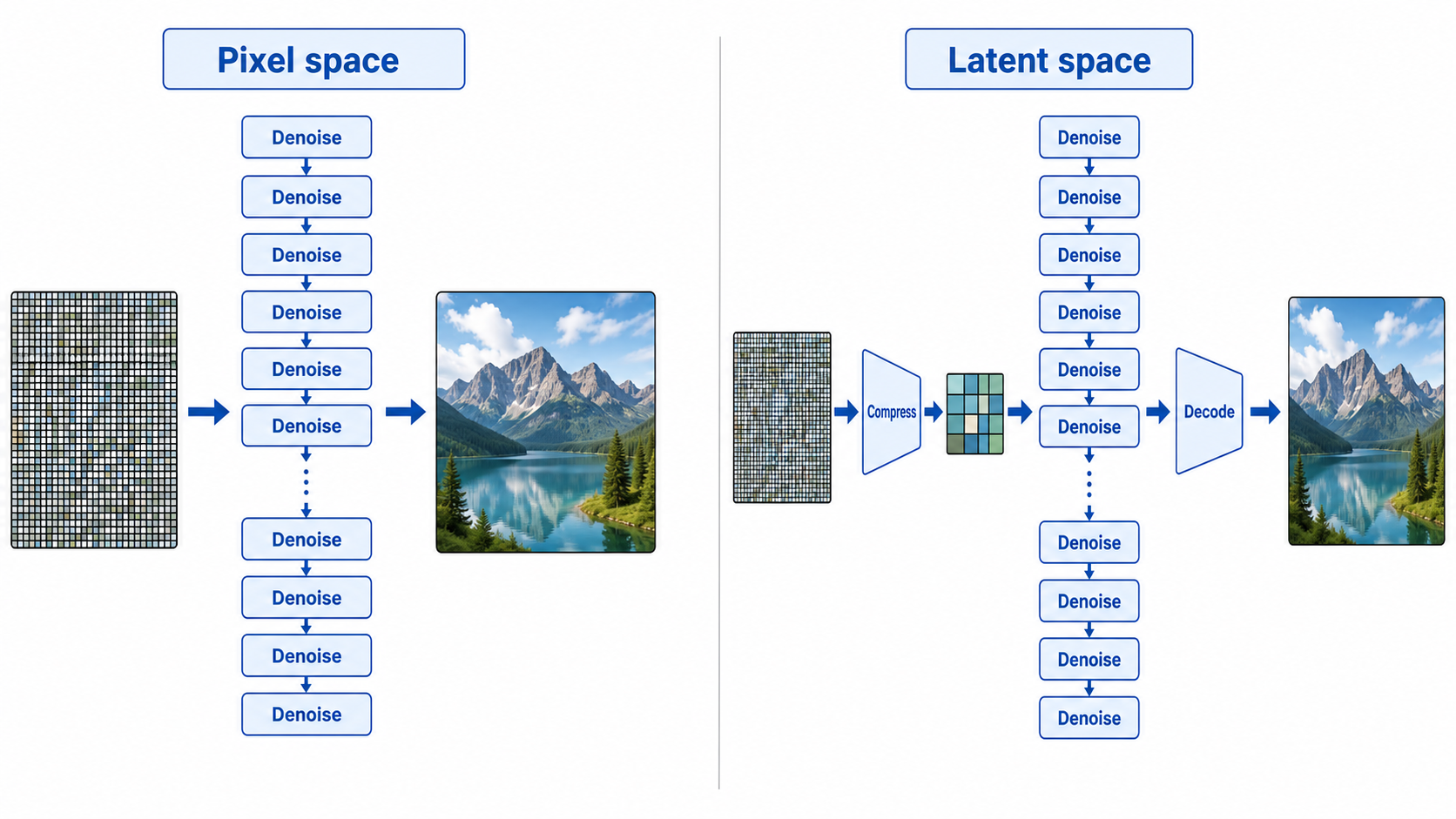

Reading note: both sides still denoise iteratively. The right side makes each iteration smaller.

Problem

Diffusion pays for every pixel, repeatedly

A diffusion model learns to reverse a gradual noising process. That can produce strong images, but sampling requires many sequential network evaluations. When those evaluations operate directly on a high-resolution RGB grid, training and generation become expensive; the paper describes powerful pixel-space systems as consuming hundreds of GPU-days. [Source: abstract and §1]

Earlier compression created a hard trade-off

Other compressed generative approaches already existed, especially autoregressive models over learned image tokens. The paper argues that they often needed very high compression to keep their sequence length manageable; reducing compression preserved more detail but raised their compute cost sharply. The authors’ proposed convolutional diffusion backbone is meant to scale more gently as the latent grid grows. [Source: §2 and §3]

The problem, then, is not simply “make the representation as small as possible.” It is: find a space that removes perceptually redundant detail without making faithful reconstruction impossible.

Method

First learn a perceptual compressor

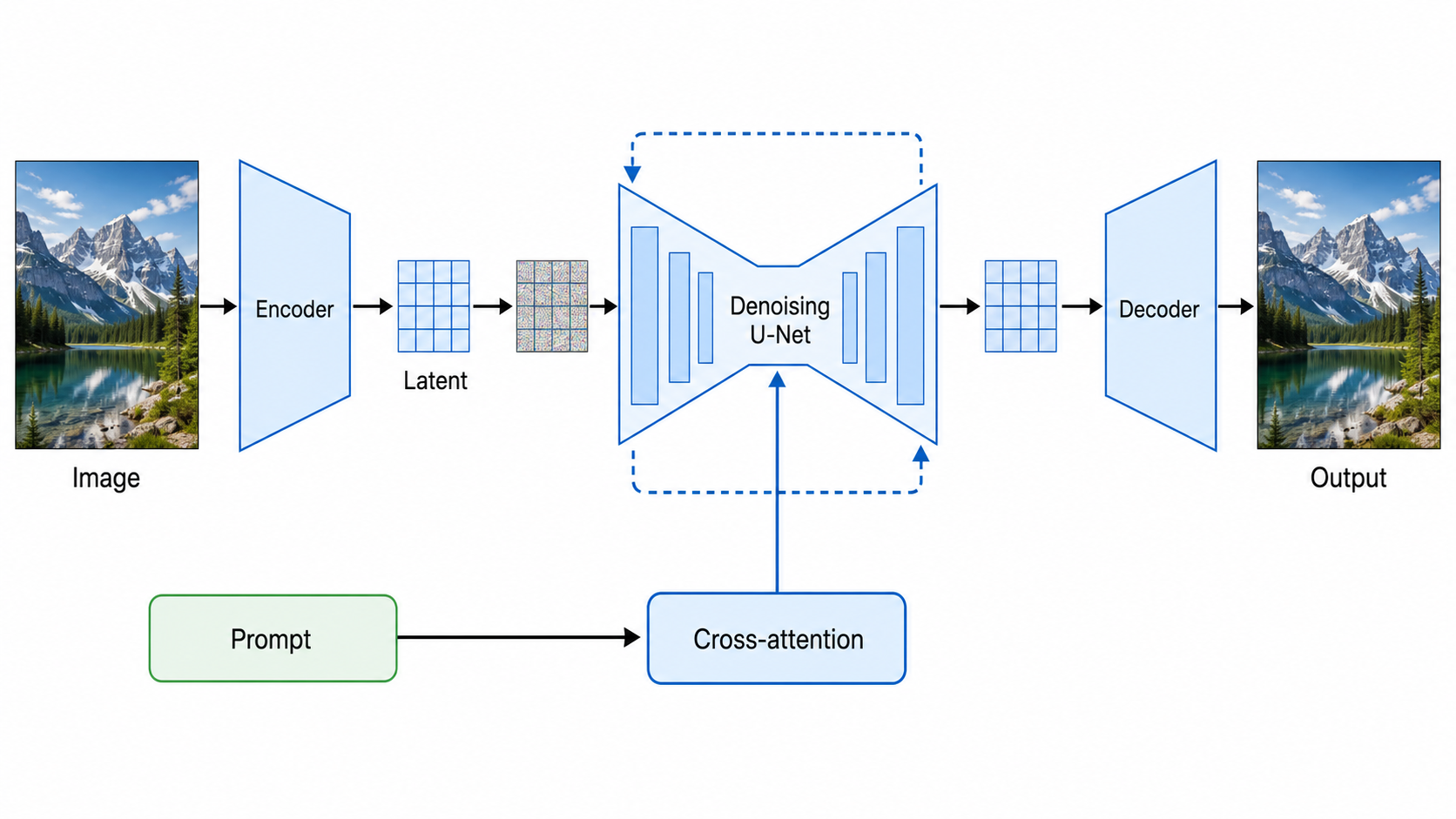

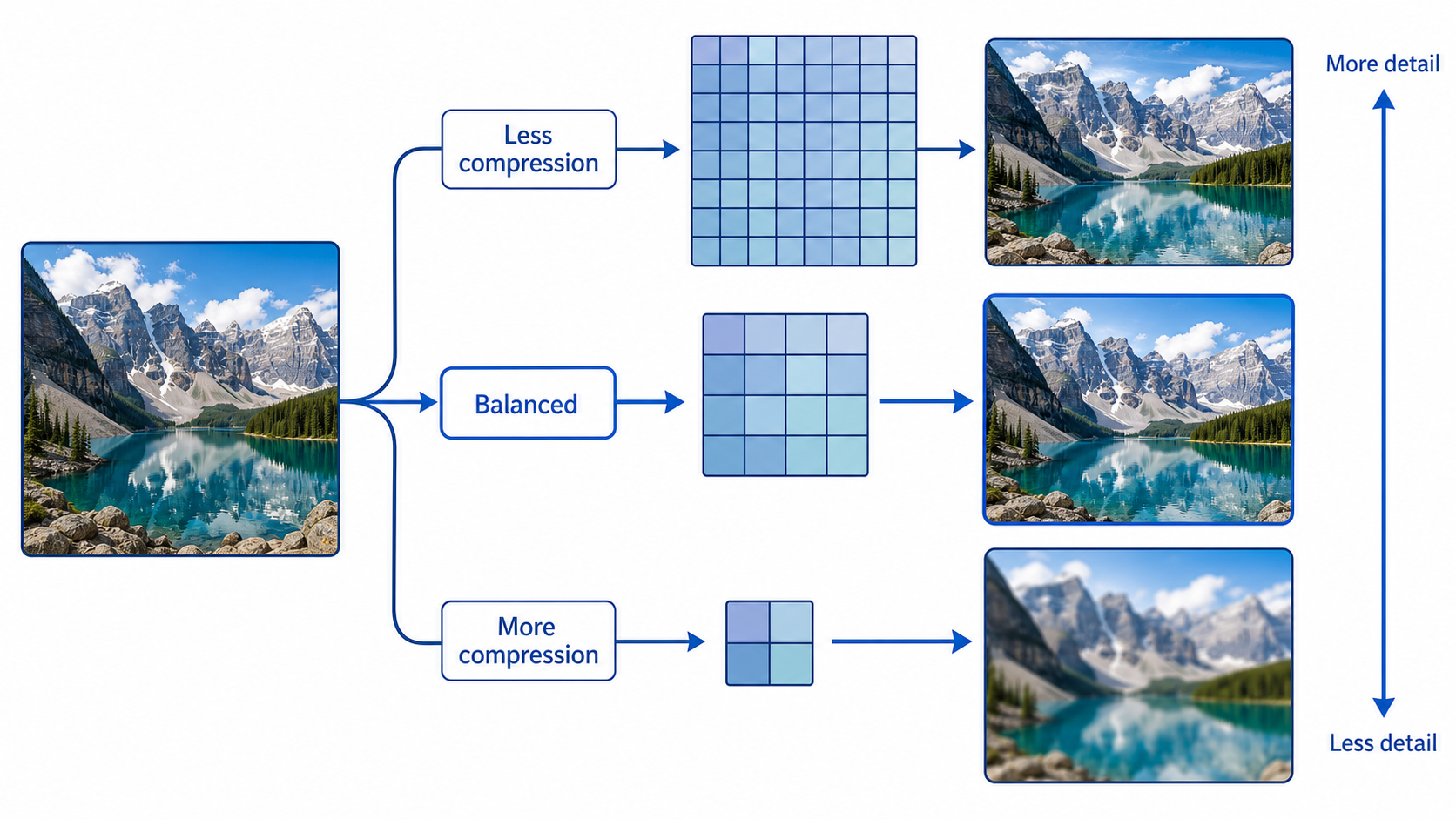

An encoder maps an image $x$ to a spatial latent $z$; a decoder maps $z$ back to an image. This first-stage autoencoder is trained before the diffusion model and uses perceptual and patch-based adversarial objectives, with either KL or vector-quantization regularization. The spatial downsampling factor $f$ controls the bargain: a larger $f$ makes a smaller latent grid but gives the decoder less information. [Source: §3.1]

Then learn diffusion in the latent grid

The denoising U-Net is trained on noisy versions of $z$, not on noisy full-resolution images. At generation time it starts from latent noise and repeatedly predicts how to remove noise. Only after a clean latent is obtained does the decoder create the pixel image. This preserves the basic diffusion objective while reducing the spatial workload of its repeated network calls. [Source: §3.2]

Inject controls with cross-attention

For a condition $y$—such as text or a semantic layout—an appropriate domain encoder first produces a representation $\tau(y)$. Cross-attention layers inside the U-Net let latent image features attend to that representation. This separates the form of the condition from the core image generator and supports text-to-image, semantic synthesis, super-resolution, and inpainting within one design pattern. [Source: §3.3 and §4]

The training path begins with real images encoded into latents; generation can begin from latent noise. The prompt does not become pixels directly—it steers the denoiser.

Evidence and limits

The strongest result is a broad efficiency–quality pattern

The paper tests unconditional generation on CelebA-HQ, FFHQ, and LSUN; class-conditional ImageNet generation; text-to-image on LAION-400M; semantic synthesis on landscapes; super-resolution; and inpainting. Its most informative ablation holds the ImageNet training setup broadly comparable while varying latent downsampling. After two million training steps, the authors report that LDMs with $f=4$ to $16$ give the best balance, while $f=32$ loses too much information and pixel-space LDM-1 trains inefficiently. They report an FID gap of 38 between LDM-1 and LDM-8 at that point. [Source: §4.1, Figure 3]

On class-conditional ImageNet at 256×256, the reported best guided LDM reaches FID 3.60, compared with 4.59 for the cited guided ADM baseline, while the paper reports substantially lower training compute for the LDM. On 256×256 image inpainting, the fine-tuned large LDM reports FID 1.50, which the authors identify as a new state of the art in their comparison. These are task-specific benchmark results, not proof that every latent model is cheaper or better in every setting. [Source: §4.2, §4.5, Tables 4 and 7]

The middle path is the paper’s design target, not a universal fixed compression rate. The useful point depends on the task and the first-stage model.

What the paper does not establish

• Sampling is still sequential, and the authors explicitly say it remains slower than GAN sampling. [Source: §5, “Limitations”]
• Reconstruction can become the bottleneck when exact pixel-level detail matters; the authors flag super-resolution as already somewhat limited by this. [Source: §5, “Limitations”]
• The benchmark suite shows breadth, but model sizes, datasets, training budgets, guidance, and sampling steps vary across comparisons. A single headline score should not be read as a controlled proof of universal superiority.
• The paper discusses misuse, bias, privacy, and deceptive media risks. It does not experimentally measure or solve them. [Source: §5, “Societal Impact”]

Source notes and verification questions

Primary source. All paper claims above are grounded in the authors’ official arXiv record and PDF, version 2. Exact table and section labels follow that version.

Terms. Latent means the learned compact spatial representation. FID compares feature distributions of generated and reference images; lower is better, but it is not a direct measure of prompt faithfulness, truth, safety, or individual-image quality. Downsampling factor $f$ means each latent spatial side is smaller than the image side by that factor.

For a modern reproduction, ask: Were all baselines retrained under the same hardware and budget? How much of the gain comes from the pretrained autoencoder? Does compression erase task-critical small structures? How do quality and latency change under equal sampling steps and equal wall-clock time?

Practical meaning

Treat the latent space as a product boundary

The paper’s durable engineering idea is modularity. A team can improve or replace the compressor, denoiser, conditioning encoder, or sampler without redesigning the entire system. But the boundary is consequential: once the encoder discards a detail, the diffusion model cannot reliably recover that exact detail from the latent alone. For creative generation this may be acceptable; for medical images, measurement, restoration, typography, or identity-critical editing, it demands direct validation.

Use the paper as a design pattern, not a guarantee

The practical pattern is: compress once, spend repeated generative computation on the compact representation, inject controls through attention, then decode once. This can make high-resolution generation accessible at lower cost while retaining flexible conditioning. Whether it is the right choice depends on what “quality” means for the application, how much latency is acceptable, and which errors compression is allowed to hide.
