HOVERVersatile Neural Whole-Body Controller for Humanoid Robots

What the controller can be asked to track

The paper reports more than 15 useful modes, produced by choosing subsets of these command elements. Table I shows that its combined command space covers the command designs attributed to ExBody, H2O, OmniH2O, HumanPlus, and MHC. This is coverage by representation; it does not mean every downstream task has been experimentally solved. [Paper §I, §II-B, Table I]

The one equation needed to understand distillation

Real question: when the student reaches a pose of its own making, how does training tell it which motor command was better?

$$\mathcal{L}=\|\hat{\mathbf{a}}_{t}-\mathbf{a}_{t}\|^{2}_{2}$$

The inputs are two 19-number lists. $\hat{\mathbf a}_t$ is the oracle’s desired joint-position action at time $t$; $\mathbf a_t$ is the student’s action. The subtraction finds each joint’s disagreement. Squaring makes negative and positive mistakes count alike and makes large mistakes matter more; summing across the 19 joints produces the single loss $\mathcal L$. Training changes the student to make this number smaller. [Paper §II-E]

For a two-joint toy example, teacher $[2,4]$ and student $[1,6]$ differ by $[1,-2]$; the squared loss is $1^2+(-2)^2=5$. Matching the teacher gives zero. If one joint’s error doubles, that joint contributes four times as much, so the update pays extra attention to large disagreements. The equation says “match the teacher’s action,” not “prove the action is safe or globally optimal.”

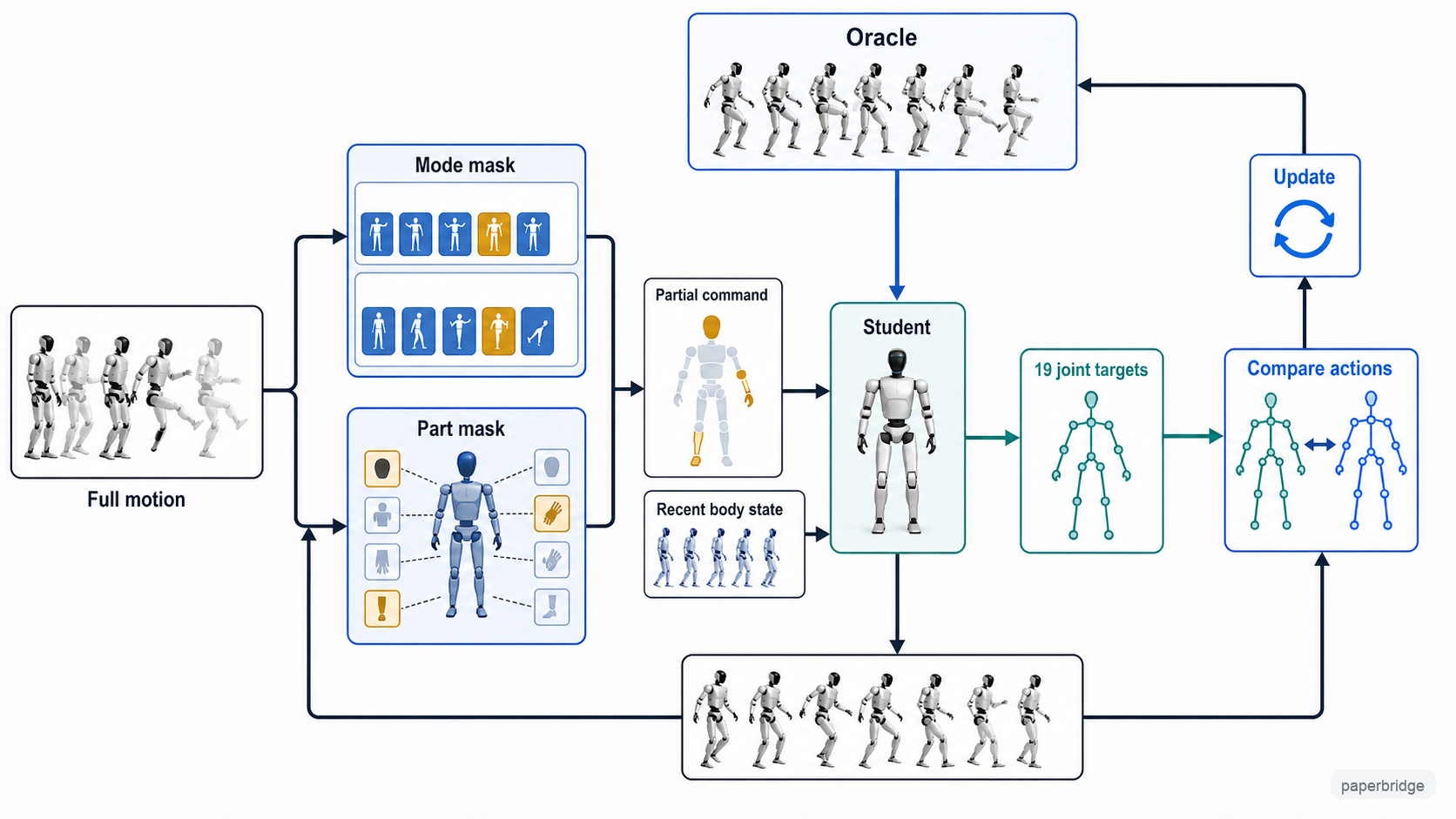

How masking creates control modes

The paper writes the student goal as:

$$s_{t}^{\text{g-student}}\triangleq M_{\text{sparsity}}\odot\left[M_{\text{mode}}\odot s_{t}^{\text{g-upper}},M_{\text{mode}}\odot s_{t}^{\text{g-lower}}\right].$$

Here the everyday bridge is a lighting panel: the complete command contains many switches, while a mask leaves some on and forces others off. $s_t^{\text{g-upper}}$ and $s_t^{\text{g-lower}}$ are upper- and lower-body targets. $M_{\text{mode}}$ selects the kind of command; $M_{\text{sparsity}}$ removes particular body elements; $\odot$ means pairwise multiplication, so multiplying by 1 keeps a value and multiplying by 0 hides it. The output is the partial goal shown to the student. More active bits give more explicit targets; fewer active bits give the policy more freedom but less guidance. [Paper §II-E]

Selected quantitative evidence

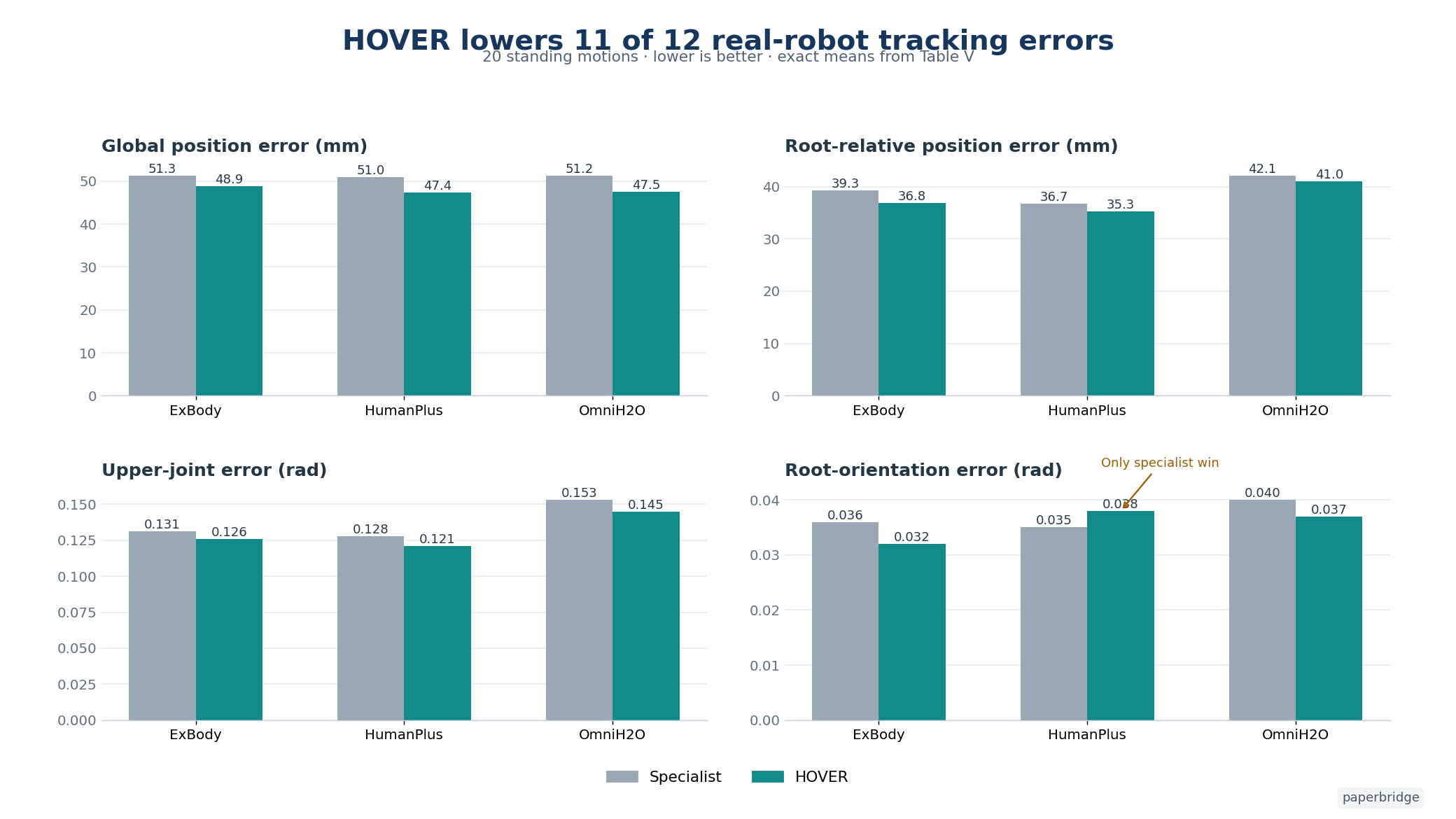

All arrows below mean lower is better except survival. Simulation results are means across the retargeted dataset and five random seeds; real-world Table V reports five tests over 20 standing motions. [Paper Tables III–V]

The paper reports that HOVER wins at least 7 of 12 simulation metrics in every named prior-work mode, all 32 comparisons against multi-mode RL in Figure 4, and 11 of 12 real standing-motion comparisons in Table V. Metrics within a row are not interchangeable: millimetres measure position, radians measure angle, and survival is a rate. [Paper §III-A–C]

What changed relative to predecessors

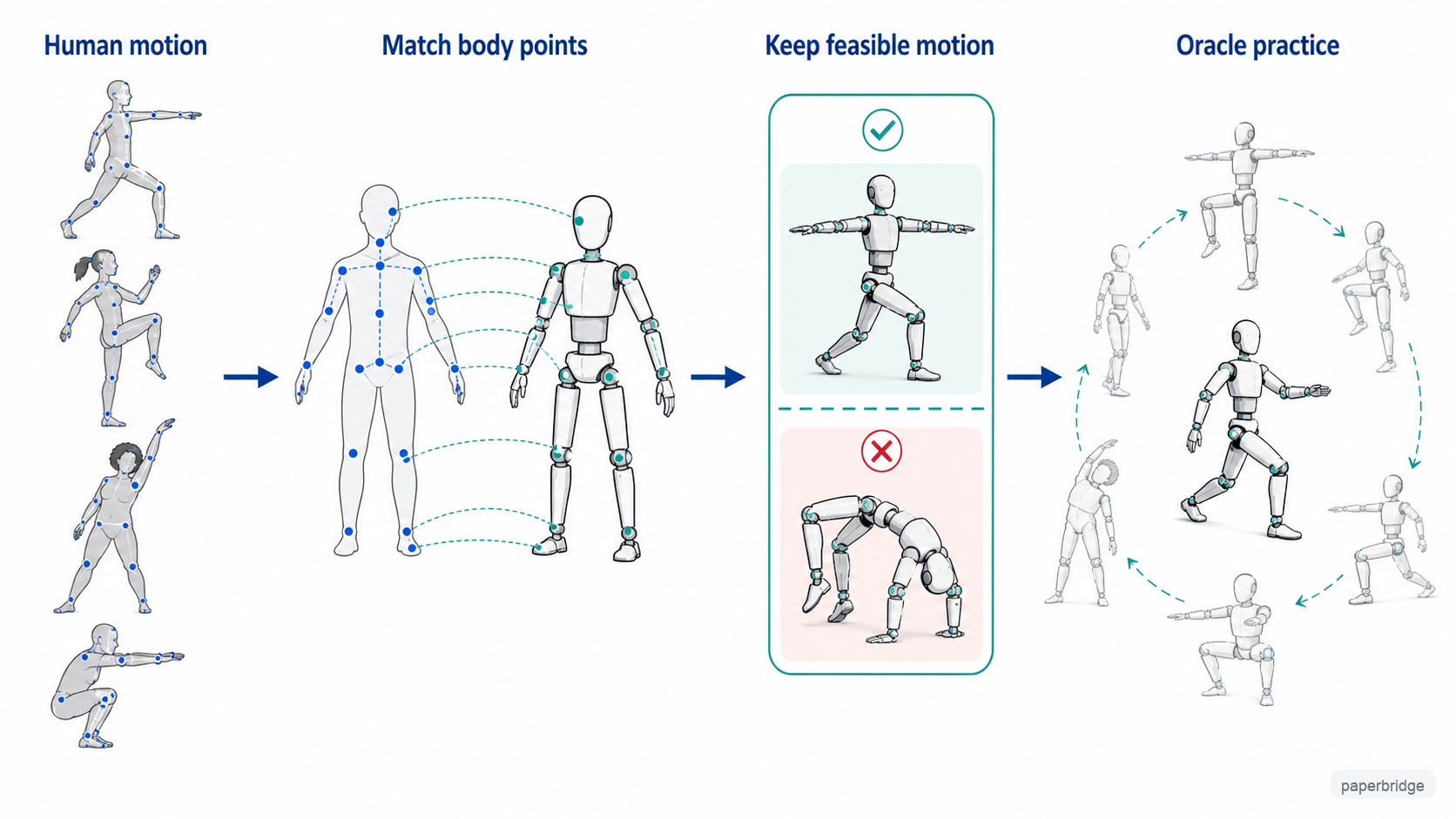

HOVER combines ingredients that the paper explicitly traces to earlier work: AMASS motion data; H2O-style retargeting and sim-to-data filtering; OmniH2O’s network, history-based sensing, and domain randomization; and DAgger for on-policy teacher correction. Its paper-specific contribution is to train a full-motion oracle and distil that skill into one policy exposed to randomized mode and sparsity masks. [Paper §II-C–E, References 9, 10, 17, 22]

Terms without prerequisites

• Root: the robot’s main body frame; its motion summarizes where the whole robot is going and how it is tilted.
• Proprioception: measurements of the robot’s own joints, rotation, gravity direction, and recent actions.
• Policy: the learned function that maps current measurements and a command to desired joint positions.
• Oracle: a training-only teacher allowed to see richer simulated state and the complete reference motion.
• Distillation: training a smaller or less-informed student to reproduce a teacher’s outputs.

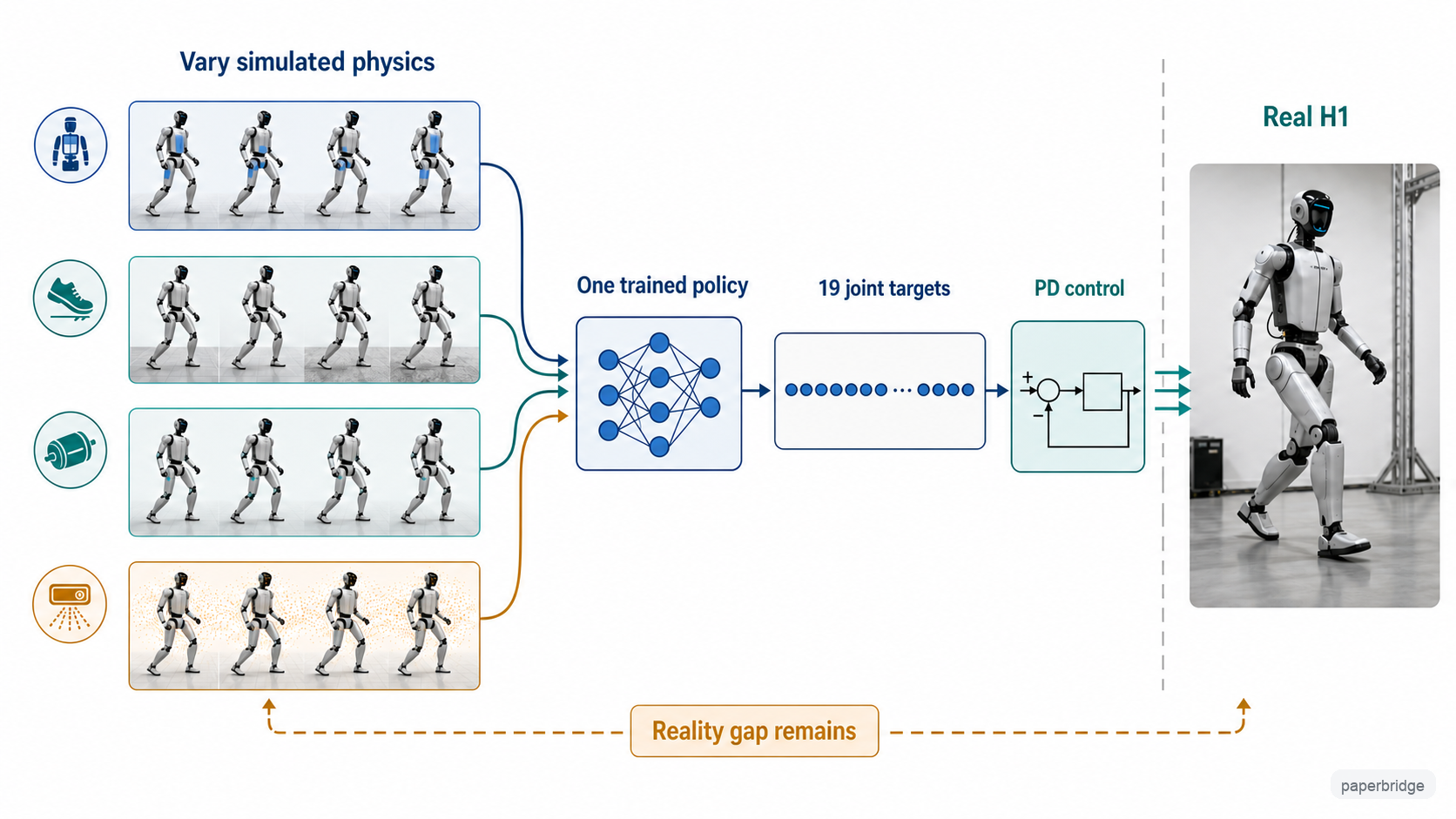

• Domain randomization: varying simulated physics so the policy does not depend on one exact virtual body.
• PD controller: a standard feedback controller that pushes joints toward target positions while damping motion.

Source grounding and uncertainties

• Title, authors, revision, venue, and abstract: arXiv primary record.
• Architecture, masks, loss, experiments, tables, and stated future work: paper PDF, especially §§II–V.
• The authors hypothesize that shared physical knowledge explains the generalist advantage; the experiments show an advantage but do not causally establish that explanation. [Paper §I]
• “Without reported real-world fine-tuning” describes the method as written; absence of a reported step is not proof that no informal hardware adjustment occurred.
• The paper gives demonstrations of abrupt switching and teleoperation, but no duration, failure-rate, disturbance, or safety benchmark for those demonstrations.

Questions for verification or follow-up

1. Does the advantage remain if teacher distillation and randomized masks are ablated separately?
2. Which simulated physical randomizations most affect real-world transfer?
3. How often does the robot fall or require intervention during long, mixed-mode runs?
4. Can an upstream system choose modes automatically without unsafe transitions?
5. Does the controller improve success on object manipulation, not only motion-tracking error?
